Description
Overview

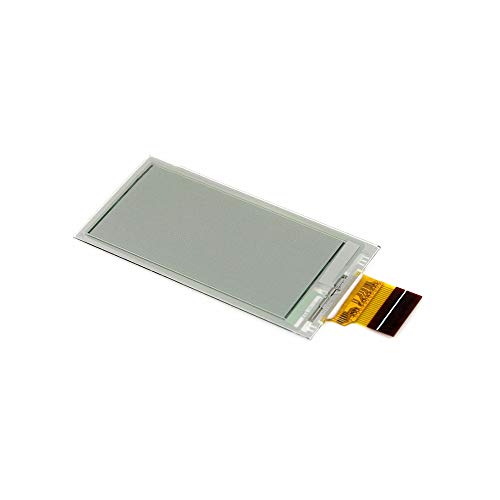

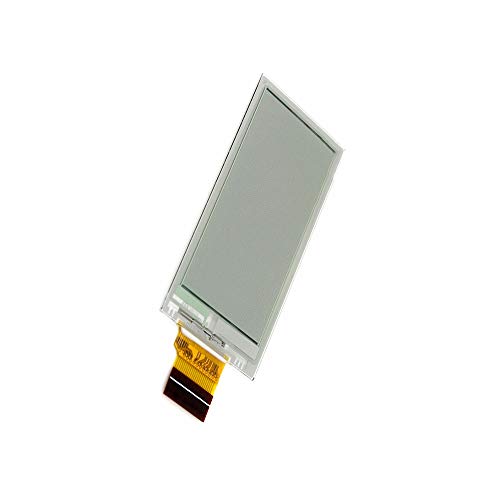

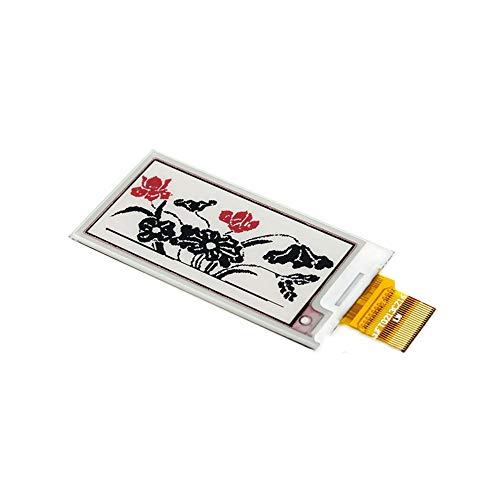

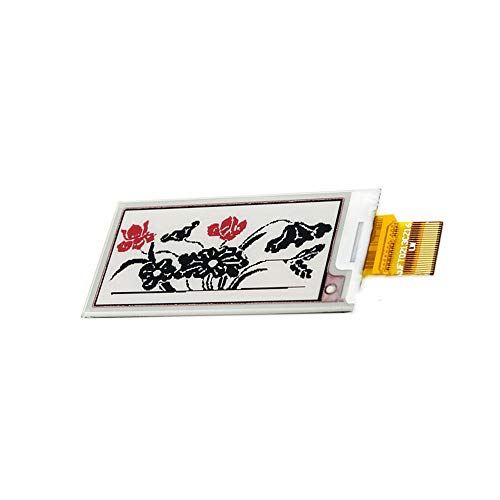

This is an E-Ink raw display, 2.13inch, 212×104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Specifications
Operating voltage: 3.3V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 29.2mm × 59.2mm × 0.98mm
Display size: 23.71mm × 48.55mm
Dot pitch: 0.229 × 0.228
Resolution: 212 × 104
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°
E-Ink raw display, 2.13inch, 212×104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
advantages: ultra low power consumption, wide viewing angle, clear display without electricity
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Interface: 3-wire SPI, 4-wire SPI
