FLAMMA FS06 Digital Preamp Pedal Guitar Effects Pedal with Built-in Cabinet Simulation 7 Preamp Models Saveable Preset

Price: $138.99 - $75.99
(as of Jan 05, 2025 10:13:21 UTC – Details)

Product Description

Editing/Save preset

Rotate the BASS, MID, TRE, LEVEL, GAIN knobs to edit the tone of the currently selected preamp model. Press and hold the SAVE button to save current settings. The LED will blink rapidly indicating save has been successful.

Preamp Models

Deluxe Blue AC31 Coral Reef Plex 50 Blue Eye 100 MB 5th Gen HVE 5151

Features

Each preamp inside the FS06 features TWO channels that can be easily switched between. The built-in cabinet simulator can also be toggled on and off for when a real-life cab isn’t available and built-in EQ knobs allow easy adjustment of Bass, Mid, Treble, Gain, and Volume levels that can be saved to each channel’s preset slot. Two modes of operation are available for the footswitch, allowing it to be used as either an on/off switch or a channel selection switch.

7 different preamp models that cover a wide variety of classic and modern guitar tones. Every preamp model has two channels with a saveable preset slot for each preamp. Built-in cabinet simulation allows users to connect directly to mixer/PA system. Footswitch can be used to switch channels or to toggle pedal ON/OFF.

About FS06 Digital Preamp Pedal

Cabinet Simulation

Built-in cabinet simulation allows users to connect directly to the mixer/PA system. Press the SAVE button and footswitch simultaneously to turn on/off the cabinet simulation. The footswitch LED will blink slowly when the cab sim is on. The LED will not blink when the cab sim is off.

Switch Channel

Switch between the two modes by pressing and holding the footswitch for just over 1 second. The footswitch LED will blink quickly, indicating the footswitch mode was toggled successfully. In on/off mode, pressing the footswitch will turn the pedal on/off. In channel mode, pressing the footswitch will change the preamp channel.

Intuitive Interface

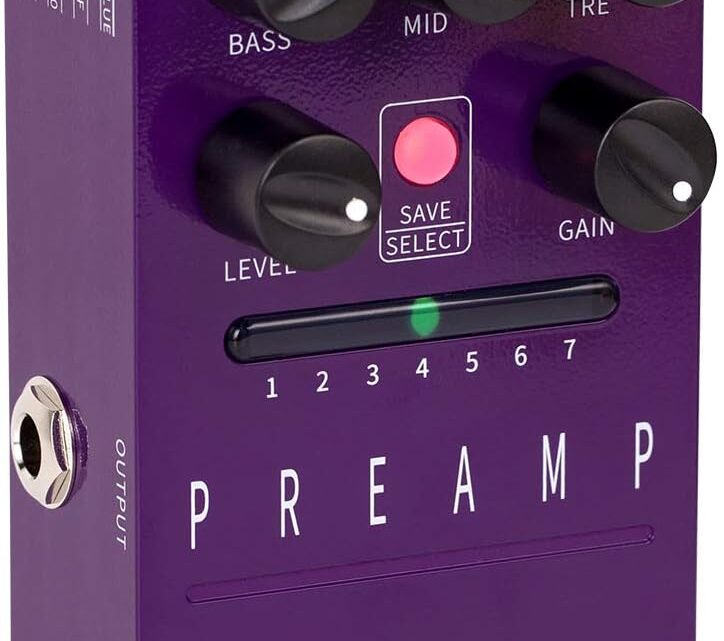

Press SAVE/SELECT button to choose the preamp model. Indicators show the selected preamp model. Rotate the BASS, MID, TRE, LEVEL, GAIN knobs to edit the tone of the currently selected model. Press the SAVE button and footswitch simultaneously to turn on/off the cabinet simulation. Press and hold the footswitch to change between the two modes.

Effect List

CONNECTION INSTRUCTIONS

SPECIFICATIONS

Input 1*1/4” mono jack (Impedance value 4.7M ohms) Output 1*1/4” mono jack (Impedance value 100 ohms) Power supply 9V DC (Negative inside. Please ensure the polarity of power supply is correct. Voltage value should be 9V exactly.) Current Draw 300mA Dimension 69.82×121.5×50.65mm Weight 0.298KG Package Included 1 x FS06 Preamp Pedal, 1 x Safety Instruction Card, 1 x Quick Guide, 1 x Sticker

【7 Preamp Models】7 different preamp models that cover a wide variety of classic and modern guitar tones. Preamp Models: Deluxe Blue, AC31, Coral Reef, Plex 50, Blue Eye 100, MB 5th Gen, HVE 5151.
【Compatible】You can connect it to a power amp of a guitar amplifier, Connect to a power amplifier directly, or Connect to an audio interface/headphone amplifier/monitor speaker/mixer. For more details, please see the full manual.
【7 Saveable Preset】Every preamp model has two channels with a saveable preset slot for each preamp. Adjust the parameters one time to keep them for the next playing.
【Cabinet Simulation】Built-in cabinet simulation allows users to connect directly to the mixer/PA system.
【Power Supply NOT INCLUDED】Please make sure your pedal is connected to an 9V DC power supply with more than 303mA. Insufficient Current may cause problms.
